Sino-Swedish Shangzhong Mining Machinery Co., Ltd

from China, Shanghai

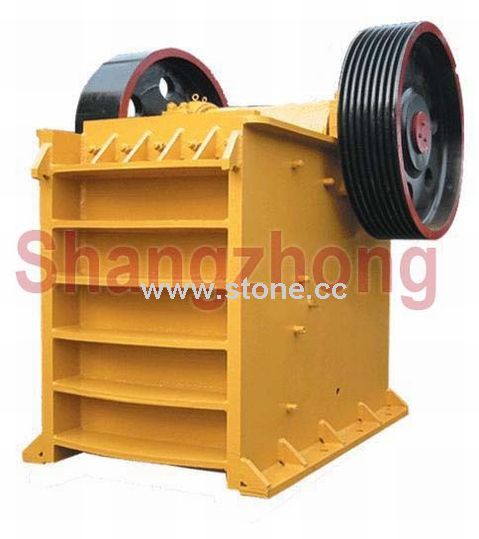

Jaw Crusher (PE900X1200)

Jaw Crusher (PE900X1200)

  • Place of Origin:

  • Type:

    Loading Equipment
  • Genre:

    Machinery & Equipment
  • sCode:

  • Place of Origin:

  • The jaw crushers are most suitable for primary and secondary crushing, hard materials, such as coke, coal, stone, granite, trap rock, manganese ore, fused aluminum, oxide, iron ore, emery, , fused calcium carbide, limestone, quartzite, alloys are easily crushed by our jaw crusher. The compressive resistance of the crushed materials is up to the 320 Mpa.

    Operating Principle:
    The motor impel the belt wheel an makes movable jaw up and down by eccentric shaft. When the movable jaw down, the angel between the fixed jaw gets smaller, then the materials can crush to reach the crushing target. When the movable jaw rises, the angel between the fixed jaw and movable jaw becomes larger.

    The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, then the crushed materials are discharged from the lower outlet of the crushing cavity.

    With the advanced technique and skills from America, Germany, Australia, our jaw crushers bear the following features and advantages:
    1 Our jaw crushers have different models to meet customers' need;
    2 It can be used to crush stone and rock of different size;
    3 The jaw crushes are people-oriented and easy to operate, with the comparative low maintenance cost;
    4 The jaw crushers are reliable in operation, long service life, high productivity, easy adjustment.
